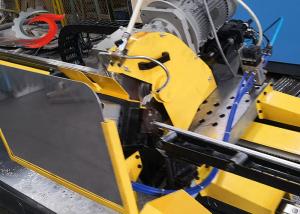

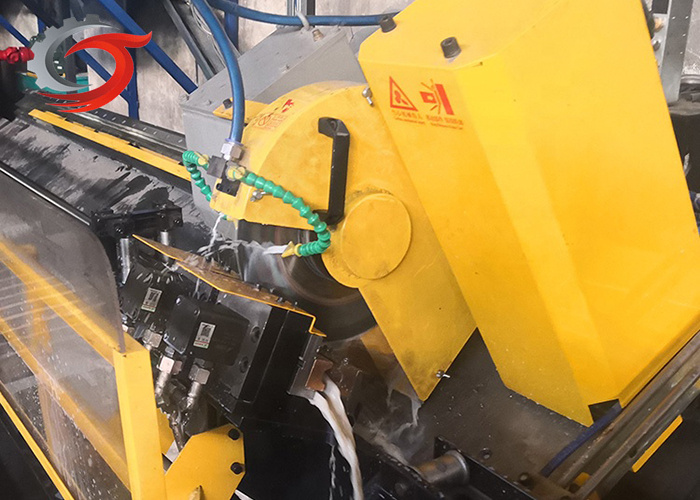

ERW Cold Saw Blade for Metal Cutting Computer Controlled Flying Saw
Introduction
No noise, no sparks, no burrs in the incision, no chamfering or secondary cutting at high speed, improving efficiency and saving raw materials
| Material | Q195 Q235 SPCC |
| Cutting range | Round tube:MAX89mm | thick:0.5～4.0mm |
| Square tube:MAX65×65mm | thick:0.5～4.0mm |
| Cutting burr height | Max:0.25mm； |
| Power supply | AC380V,3PH,50HZ |
| Mechanical length | 5420*1380*1280mm(as per final drawing) |
| Motor list | Drive:18.5KW | PHASE servo motor |
| feed: 3.3KW | PHASE servo motor |
| saw: 22KW | Siemens AC motor |
| Saw blade | High speed steel |
| Carriage protection | Safety bumpers for carriage are equipped at both ends |
| Equipment document | User’s manual & electrical diagram |
Features
1. AC, DC or linear servo motor for the acceleration of the mobile trolley
2. Low cutting time and high production speed are realized.
3. Fully automatic control by NC with user-friendly HMI interface, no need for the operator to be at the control station all the time
Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Check the cold flying saw before shipment
3. Discuss technical details with our professional engineers
4. Control the production progress and quality of the machine, and provide you with detailed information in time
5. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
6. After the warranty period, spare parts are provided at cost
7. Professional engineers help you increase production, reduce waste and reduce costs
