6m Automatic CNC Cutting Machine , 100m/Min Cold Saw Machine

Brand Name : JCCS

Model Number : JCCS-76

Place of Origin : HeBei China

MOQ : 1 set of

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15-30 work days

Packaging Details : Usually a high quality steel square tube making machine is loaded in a container. Depends on the size and weight of the machine.

Product name : Pipe Cutting Machine

Origin : HeBei China

Applicable industries : Manufacturing plant, ERW production line

Core components : PLC, bearing, gear

Type : Pipe production line

Function : Clean cut

Application : Drain pipe

Main selling point : Remote control

Contact Now

Low carbon steel pipe cutting machine metal pipe automatic cold saw cutting machine flying saw machine

Introduction
Flying saws are auxiliary equipment used in continuous production lines. Flying saw automatic fixed ruler to cut steel pipe. It is one of the first component support devices for welded pipe production. The flying saw uses a low-inertia DC motor to measure, calculate, and drive the saw car and the high-speed pipe through a mechanical transmission device, and then cut the pipe into a specified length.

Material Q195 Q235 SPCC

Cutting range

 Round tube:MAX89mm thick:0.5～4.0mm
Square tube:MAX65×65mm thick:0.5～4.0mm
Rectangular tube:MAX 50×80mm thick:0.5～4.0mm
Production speed 100m/min(length 6 meter,dia.≤25mm)
Cutting length 1500-99999mm
Length tolerance ±1.5mm(speed diviation not more than 2%)；
Operation height 750mm
Cutting burr height Max:0.25mm；
Power supply AC380V,3PH,50HZ

Mechanical length 4420*1280*1280mm(as per final drawing)

Motor list

 Drive:15KW Yaskawa servo motor
feed: 2.9KW Yaskawa servo motor
saw: 15KW Siemens AC motor
Linear guide Hiwin Chinese Taiwan
Clamp Pneumatic
Clamp block model tape shape to avoid scratching the steel pipe
Oil supply system Auto oil filling
Saw blade High speed steel
Main shaft gearbox Special made
Gear rack KH from Chinese Taiwan
Cable protection Drag chain
Carriage protection Safety bumpers for carriage are equipped at both ends
Equipment document User’s manual & electrical diagram


Features

1. Ability to handle products of various shapes: round, square, rectangular, open profiles
2. High cutting precision
3. Remote monitoring function, which can remotely evaluate the on-site operation status
4. After programming, there is no need for the operator to always be at the console

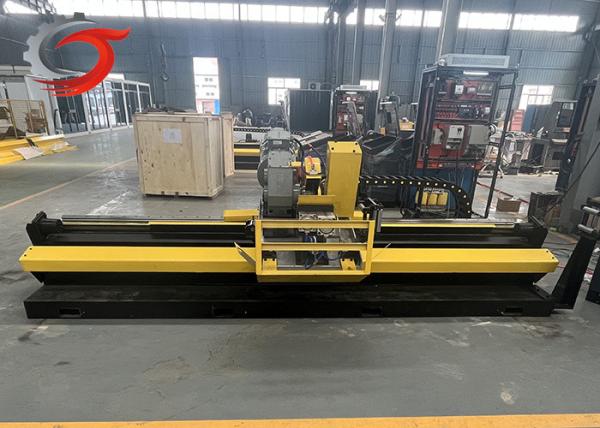

6m Automatic CNC Cutting Machine , 100m/Min Cold Saw Machine

Our advantage

1. Advanced production testing equipment and strict quality control system ensure good and stable product quality.
2. Cost-effective and long-life saw blades help customers save more money.
3. The steel plate is chrome-plated, the blade is rust-proof, and the appearance is better.
4. Factory direct sales ensure more professional service and prompt delivery time.
