Cold Cut Flying Cut Off Machine

Name: Cold Cut Flying Cut Off Machine
Brand: JCCS
Price: 1 USD

Brand Name : JCCS

Model Number : JCCS-60

Place of Origin : HeBei China

MOQ : 1 set of

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15-30 work days

Packaging Details : Usually a high quality steel square tube making machine is loaded in a container. Depends on the size and weight of the machine.

Product name : Pipe Cutting

Origin : China

Control System : CNC controller

Applicable industries : Building material stores, manufacturing plants, mechanical repair shops, construction works, energy and mining

Main selling point : Flexible manufacturing

Tube : Carbon steel

Application : Drain pipe

Core components : Gearbox, motor

Contact Now

Pipe and Tube Cutting Machines Cut-Off Saw Pipe Cold Cut Flying Saw Saw

Introduction
The material can be cut to a preset length with high precision, and the cutting cycle is short. The fly-cut carriage system accelerates to match the tube mill speed and maintains that speed during the cutting process. After cutting, it reverses direction in acceleration mode until it returns to its original position, waiting for the next working cycle.

material	Q195 Q235 SPCC
Cutting range	Round tube:MAX76mm	thick:0.5～3.5mm
	Square tube:MAX60×60mm	thick:0.5～3.5mm
	Rectangular tube:MAX 40×80mm	thick:0.5～3.5mm
Production speed	120m/min(length 6 meter,dia.≤25mm)
Cutting length	1500-99999mm
Length tolerance	±1.5mm(speed diviation not more than 2%)；
Operation height	750mm
Cutting burr height	Max:0.25mm；
Power supply	AC380V,3PH,50HZ

Mechanical length	542013801280mm(as per final drawing)
Motor list	Drive:18.5KW	PHASE servo motor
	feed: 3.3KW	PHASE servo motor
	saw: 18.5KW	Siemens AC motor
Linear guide	Hiwin Chinese Taiwan
Clamp	Pneumatic
Clamp block model	tape shape to avoid scratching the steel pipe
Oil supply system	Auto oil filling
Saw blade	High speed steel
main shaft gearbox	Special made
Gear rack	KH from Chinese Taiwan
Cable protection	Drag chain
Carriage protection	Safety bumpers for carriage are equipped at both ends
Equipment document	User’s manual & electrical diagram

Features

1. The base of the equipment is equipped with feeding guide rollers (up and down, left and right rollers), the front end of the fixture is equipped with auxiliary guide rollers, and there are idlers at the final discharge position. All idlers contribute to the parallel movement of the pipe during sawing.

2. Both ends of the saw body are equipped with pulley safety buffers;

3. The saw blade is equipped with a steel brush device, which can remove iron filings on the saw blade when rotating;

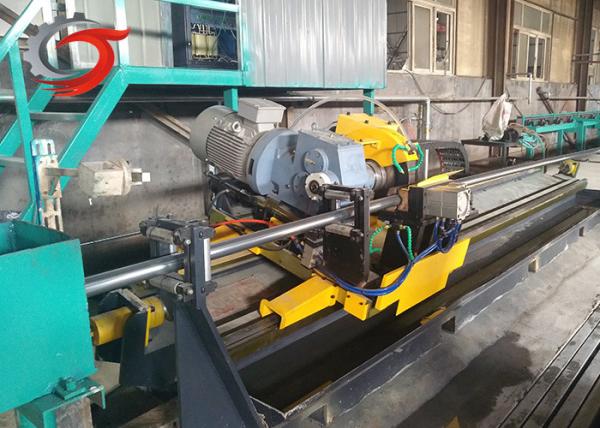

Cold Cut Flying Cut Off Machine

Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
