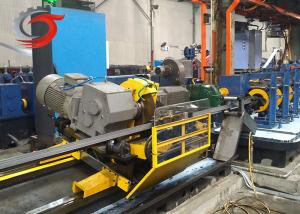

PLC 80m/Min Flying Cut Off Saw 4mm Flying Saw Machine

Brand Name : JCCS

Model Number : JCCS-76-144

Place of Origin : HeBei China

MOQ : 1 set of

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 20 Set/Sets per Month

Delivery Time : 15-30 work days

Packaging Details : Usually a high quality steel square tube making machine is loaded in a container. Depends on the size and weight of the machine.

Product name : Cold Cutting Saw

Origin : China

Applicable industries : Building material stores, manufacturing plants, mechanical repair shops, construction works, energy and mining

Core components : PLC, bearing, gear

Type : Stable performance

Main selling point : Remote control

Application : Drain pipe

Contact Now

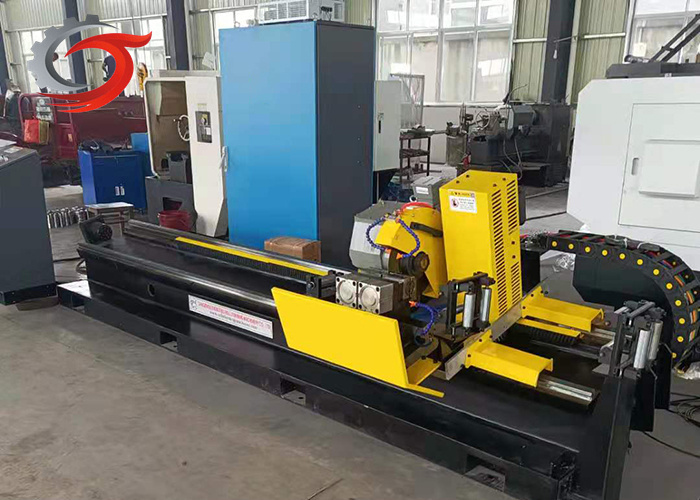

Automatic Pipe Cutting System Cold Cutting Flying Saw

Introduction
The trolley is tracked and synchronized, and the return operation is driven by the motor through the gear and rack, based on the welded base, which supports it to run on the self-lubricating linear guide.

Material Q195 Q235 SPCC

Cutting range

 Round tube:MAX114mm thick:0.5～4.0mm
Square tube:MAX90×90mm thick:0.5～4.0mm
Rectangular tube:MAX 50×90mm thick:0.5～4.0mm
Production speed 80m/min(length 6 meter,dia.≤25mm)
Operation height 800mm
Cutting burr height Max:0.25mm
Power supply AC380V,3PH,50HZ

Features

1. Equipped with adjustable cooling spray pipeline to flush the impurities and iron filings on the saw blade and clamping block;

2. Sawing method: saw blade and feed are adjustable, that is to say, the speed of the feed servo motor is variable, and the speed of the saw blade is variable, so that the utilization rate of the saw blade is greatly improved; and the saw blade wear protection system is provided.

3. The saw blade is equipped with a steel brush device to remove iron filings on the saw blade when rotating;

PLC 80m/Min Flying Cut Off Saw 4mm Flying Saw Machine

Our service
1. Professional pre-sales consultation and after-sales service to help you find the best solution
2. Discuss technical details with our professional engineers
3. Strictly control the quality and production plan of the cold flying saw. You will be kept informed of any progress
4. Check the cold flying saw before shipment
5. After the warranty period, spare parts are provided at cost
6. Professional engineers help you increase production, reduce waste and reduce costs
7. Control the production progress and quality of the machine, and provide you with detailed information in time
